Techincal Overview

Basic app flow

Video

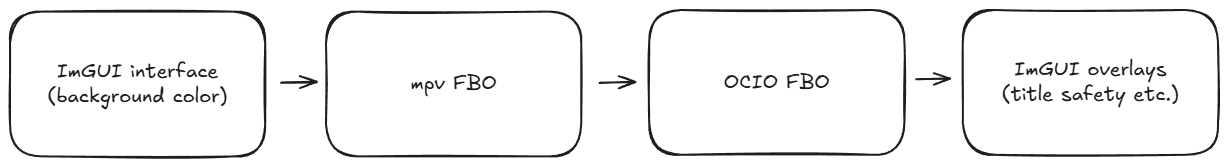

The basic app flow places the mpv and image-sequence FBO between the interface and a separate OCIO FBO. This flow allows for real-time background color/pattern swapping (try toggling B on the keyboard) and real-time OCIO shader generation on top of all videos and image sequences.

app flow 1

Image Sequences

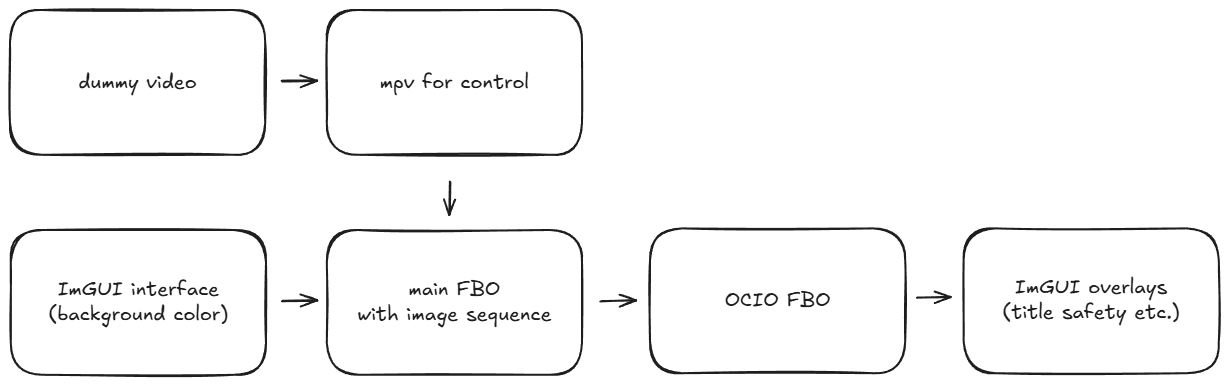

Image sequences use mpv for control and playback indirectly. When loading an image sequence, u.m.p. will create a dummy video for mpv to use for control, but instead directly extract images to memory straight to the OpenGL FBO. This process bypasses mpv for playback and provides a faster image sequence flipbook for review. It also allows for layer extraction from multi-layer EXRs. It includes the option to transcode larger (think 4k EXRs at DWAB and uncompressed TIFFs) to lower resolution/compression for smoother playback. See the Images page for more info on best practices and IO/decompression limitations with these formats.

app flow 1

Pipeline Modes

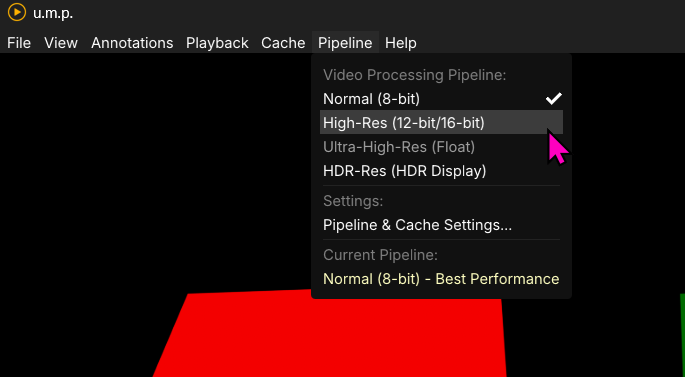

u.m.p. supports several pipeline modes with various media types. What this means in practice: When a particular pipeline mode is selected, mpv itself is configured for the appropriate bitrate in playback, and the cache settings are adjusted appropriately. Here is a breakdown:

pipeline modes

  • Normal mode: This allows for normal 8-bit mpv playback and is appropriate for most video formats and 8-bit TIFF, PNG, and JPEG sequences. Caches are adjusted to the RGBA8 format to match.
  • High-Res mode: This allows for mpv to playback 12-bit video with full fidelity (think ProRes 4444) and adjusts the cache to RGBA16 (integer). I am keeping this as a user-selectible option for videos, but for the most part, 8-bit is fine for reviewing–even with ProRes. This mode will also be used automatically for 16-bit TIFFs and 16-bit PNGs.
  • Ultra-High-Res mode: is exclusively used for floating-point EXR image sequences. When an EXR is loaded, u.m.p will automatically switch to this mode, and the cache will be set to RGBA16F (half-float).
  • HDR-Res: is also RGBA16F (half-float), and mpv is set to linear for HDR video playback on an HDR monitor. I haven’t tested this yet–YMMV.

Note: With all image sequences, the pipeline mode is automatically set based on the image format. Pipelines are only user-selectible with videos.
