OCIO

The Color Panels

The OCIO color panel is a basic node builder for OCIO flows. Currently, u.m.p supports ACES 1.3 and the Blender 4.5 configs.

Window

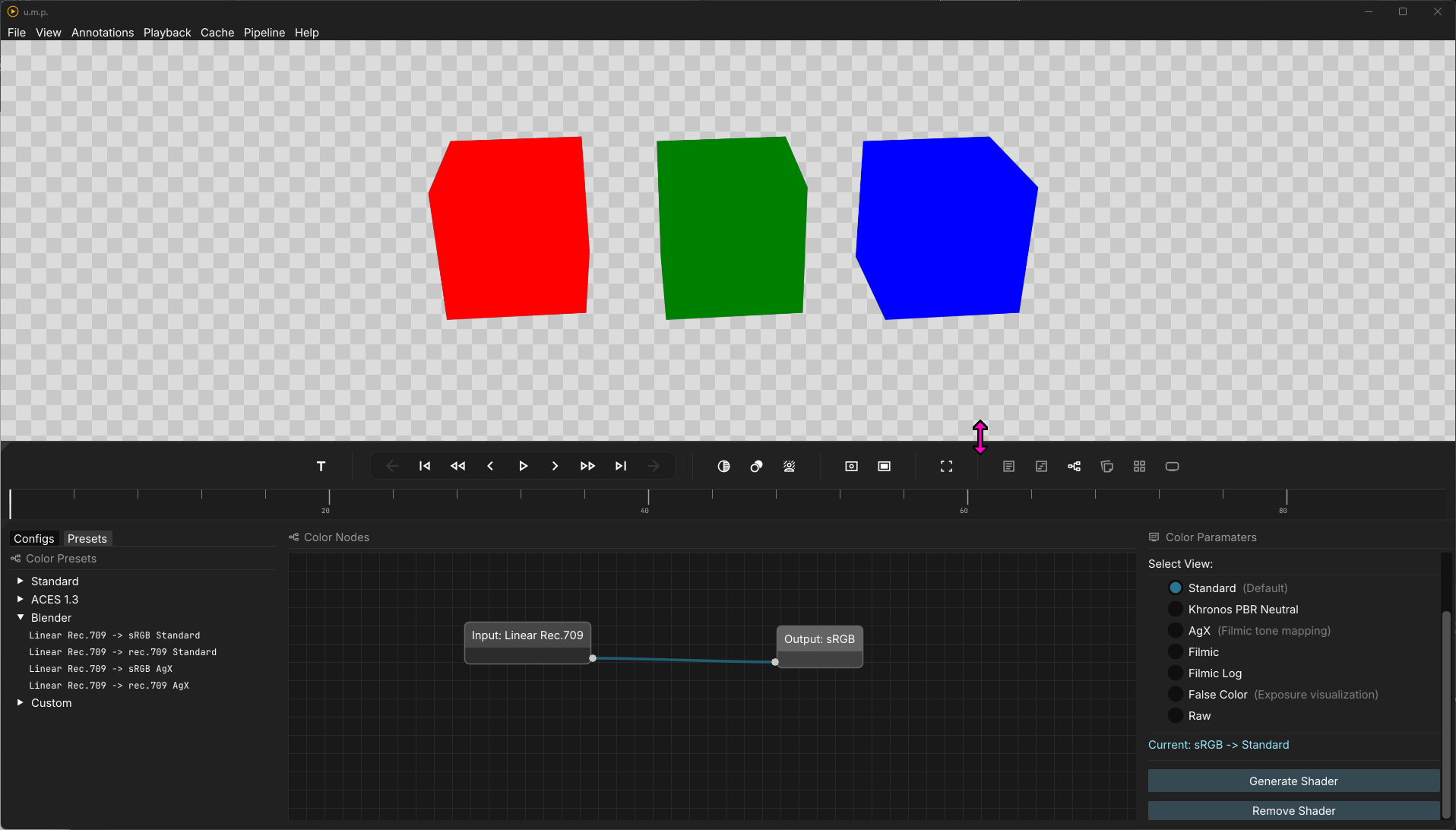

The left panel has two tabs: Configs and Presets. The Configs tab has our two supported configs preloaded, and Presets contains the presets that are available in the quick-access ‘Toggle colorspace presets’ button.

  • Additionally, our Presets tab has a Custom dropdown tree. After building your own custom flow, you can click the Save Current as Preset button to save your own presets.

The Flow

The basic flow for OCIO nodes is Input -> (Optional) Look -> Output. At minimum, you need an input and an output.

Usage

  • Drag a nodes from the Configs tab on the left to the node editor in the middle.
  • Connect your Input to the Output (Looks go in between them if you use them).
  • Click on the output node, Select a View from the available list in the right panel.
  • Click Generate Shader in the right panel.
